Description

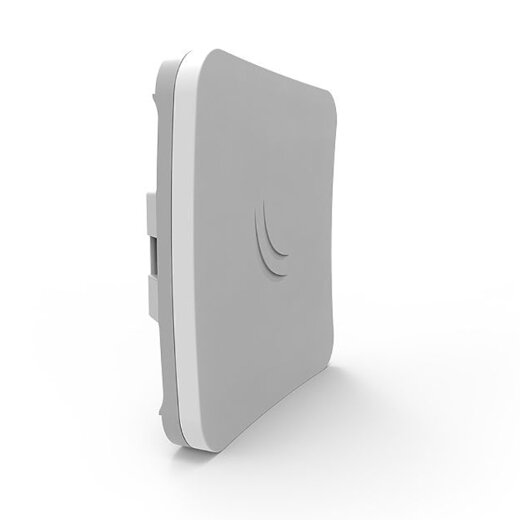

The SXTsq 5 ac from MikroTik (product code RBSXTsqG-5acD) is a compact and lightweight outdoor 802.11ac wireless device with integrated 16dBi directional panel antenna. This device works great for point-to-point and point-to-multipoint links.
You can directly attache a hose clamp mount on three different mounting places and also have the ability to mount it on a horizontal railing. There is also an easily accessible grounding connection to protect it against lightning. Its weatherproof design allows a realiable function for indoor and outdoor installations. A RouterOS Level 3 License is included.
Technical Data:
| Manufacturer / Model: | Mikrotik / SXT sq 5 ac (RBSXTsqG-5acD) |
| Processor: | ARM 32bit - IPQ-4018 - 716MHz Quadcore |
| Size of RAM: | 256 MB |
| Storage: | 16 MB Flash |
| WiFi Frequency: | 5 GHz |
| Supported WiFi Standards: | 802.11a/n/ac |
| Operation Modi: | Accesspoint, Station |
| Security: | WEP 64/128/152-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES |
| TX Power: | max. 25dBm |
| RX Sensitivity: | min. -96dBm |
| Modulation Scheme: | OFDM: BPSK, QPSK, 16 QAM, 64QAM,DSSS: DBPSK, DQPSK, CCK |
| Ethernet Interface: | 1 x 10/100/1000 (RJ-45) |
| Networking Modes: | Router, Bridge |
| Antenna: | Integrated Directional Antenna |
| Gain: | 16dBi |
| Beamwidth: | 23° |
| max. Power consumption: | 7 Watt |
| Power methos: | 10 V - 30 V, passive PoE |
| RouterOS License: | Level 3 |
| Appliance: | In- / Outdoor |
| Dimensions: | 12.9 x 12.9 x 3.4 cm |
| Weight: | Device: 295g; Package: 492g |
| Operation Temperature: | -40 to 70° C |
| Humidity: | 0% to 90% (non-condensing) |
Scope of delivery:
| 1 x Mikrotik SXTsq 5 ac (RBSXTsqG-5acD) |
| 1 x PoE Injector |
| 1 x 24V 0,38A power adapter |
| 1 x Metal ring |
