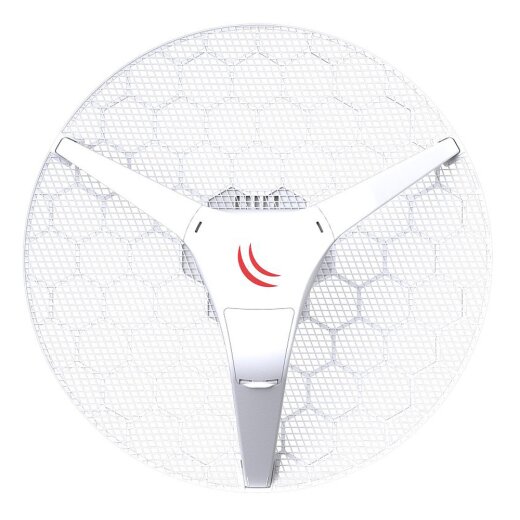

The LHG is a compact and light 2.4GHz 802.11b/g/n wireless device with an integrated dual polarization 18 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind up to 186N at 205 km/h, and the fact that the WiFi antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
Its weatherproof design allows a realiable function for indoor and outdoor installations.
A RouterOS Level 3 License is included.
Technical Data:
| Manufacturer / Model: |
Mikrotik / RBLHG-2nD |
| Processor: |
QCA9533 | 650 MHz |
| System Memory: |
64 MB |
| Storage: |
16 MB Flash |
| WiFi Frequency: |
2.4 GHz |
| Supported WiFi Standards: |
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n |
| Operation Modi: |
Accesspoint, Station |
| Wind loading: |
186N @ 205 km/h |
| Shock and vibration: |
WETSI300-019-1.4 |
| ETSI specification: |
EN 302 326 DN2 |
| TX Power: |
1Mbps: 25
11Mbps: 25
6Mbps: 25
54Mbps: 22
MCS0: 25
MCS7: 21/td>
|
| RX Sensitivity: |
1Mbps: 100
11Mbps: -93
6Mbps: -94
54Mbps: -80
MCS0: -94
MCS7: -75 |
| Ethernet Interface: |
1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| Networking Modes: |
Router, Bridge |
| Antenna: |
Integrated Grid Antenna |
| Gain: |
18 +/- 0.5 dBi |
| Antenna beam width: |
18° |
| Cross polar: |
15dBi |
| Port to port isolation: |
23 dB |
| Front to back ratio: |
25 dB |
| Return loss: |
10 dB |
| max. Power consumption: |
5 Watt |
| Power methos: |
10-30V passive PoE |
| RouterOS License: |
Level 3 |
| Appliance: |
In- / Outdoor |
| Dimensions: |
Ø 39.1 x 22.2 cm (Package: 45 x 45 x 14.5 cm) |
| Weight: |
0.560 kg (Package: 1.98 kg) |
| Operation Temperature: |
-40°C to +70°C |
| Humidity: |
5% to 95% (non-condensing) |
Scope of delivery:
| 1 x Mikrotik RBLHG-2nD |
| 1 x PoE Injector |
| 1 x 24V, 0.38A Power Supply |
| 1 x Mounting Equipment |
