This multiband 5G / 4G directional antenna is designed for all 4G and 5G frequency bands used in Germany and Europe. The antenna can therefore be used universally for all 4G and 5G services and increases the range, signal strength, and transmission rate of your data connection through the performance gain of up to 8dBi. The antenna can be used with all common 4G or 5G routers. Just check if your router has two external antenna connectors. Typically, the router can then be combined with an external antenna.
Due to the directional characteristics of the antenna, it must be aligned with the transmitter mast of your 4G or 5G provider. The strong signal focusing and directional effect of the antenna can create a very long range. Therefore, the antenna is very suitable for use in fixed installations.

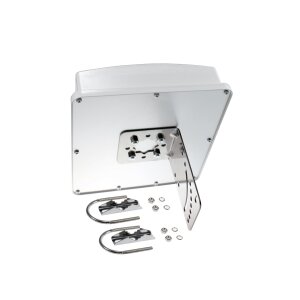

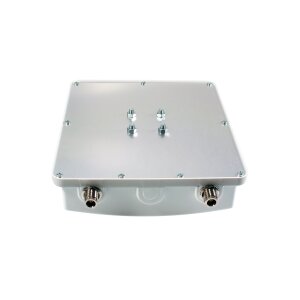

The antenna is suitable for outdoor use and can therefore be easily used as a 5G outdoor antenna. A solid mounting set for mast installation is included with the antenna. The form factor of the antenna is quite compact. Therefore, this 4G / 5G antenna is rather inconspicuous and can be quickly and easily mounted on a corresponding mast.

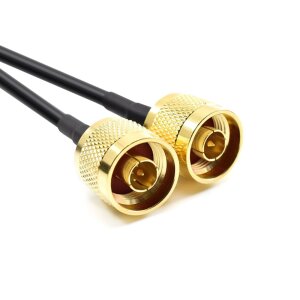

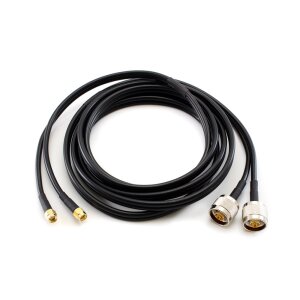

A suitable TWIN antenna cable (N male to SMA male) of type CLF200 with a lenght of 5m is included. This means you can connect and operate the antenna directly to an 4G or 5G router with SMA connectors (standard).
Technical Data Antenna:
| Manufacturer / Model: | JARFT / MIMO-PA-072738-01-1 |
| Type: | Directional Antenna |
| Gain: | 5dBi @ 700-960 MHz 8dBi @ 1700 - 2700 MHz 8dBi @ 3300 - 3800 MHz |
| Impedance: | 50 Ohm |
| Frequency Range: | 698-960 MHz (GSM, 3G, 4G) 1710 - 2700 MHz (3G, 4G) 3300 - 3800 MHz (5G) |
| VSWR: | max. 2.5 |
| Beam Width: | 90° Horizontal 40° Vertical |

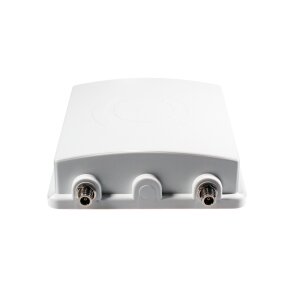

| Connector: | 2 x N female |
| Enclosure: | ABS Polymer |
| Application: | Indoor and Outdoor |
| Dimensions: | 23.3 x 20.0 x 6 cm |
| Weight: | 250g (550g incl. mounting accessories) |
| Color: | White |
Technical data antenna cable:
| Cable Type: | TWIN antenna cable |
| Length: | 5m |
| Impedance: | 50 ohms |
| Damping: | 0.30db/m @ 800MHz 0.46db/m @ 1.8GHz 0.56db/m @ 2.6GHz 0.86db/m @ 5.8GHz |
| Capacity: | 80.3pf/m |
| Internal leader: | 1.12mm copper wire |
| Isolation: | 2.95mm PE |
| Outer shell: | PVC |
| Outside diameter: | 4.95mm |
| Color: | Black |
| Connector: | N male to SMA male |
Scope of Delivery:
| 1 x JARFT MIMO-PA-072738-01-1 Antenna |
| 1 x Mounting Accessories for Mast Installation |
| 1 x 5m CLF 200 TWIN Antenna cable with SMA male to N male |
Homepage: https://www.jarft.eu/
