B-WARE Interline SECTOR H60 | 2.4 GHz WLAN Sektor Antenne, 60° Horizontal, H-Pol, 14dBi

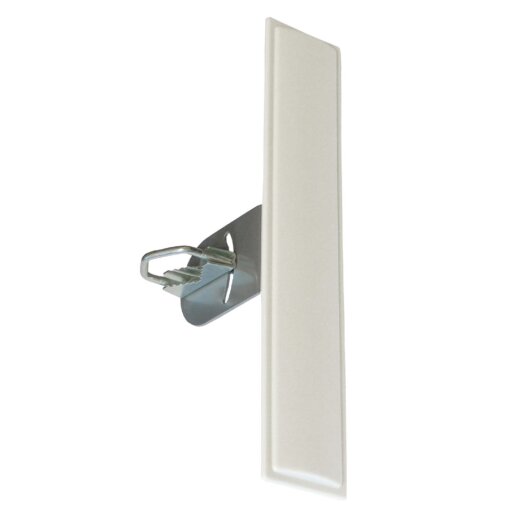

The Interline SECTOR H60 (IS-G17-F5258-A60-H) is a horizontally polarized 2.4GHz WiFi sector antenna with a signal opening angle of 60° and a power gain of 14dBi. The housing of the sector antenna is made of robust, weatherproof and UV-resistant plastic and is suitable for indoor and outdoor use. The INTERLINE H60 is suitable for mounting on a pole or a wall bracket.

This item is a B-goods item:
- The item may show signs of wear
- The item images show new goods, not the B-stock item
- Separate 12 month warranty
- Original packaging may be damaged/missing
ART6260-BWARE 5907758040188 IS-G17-F5258-A60-HB
24,99 €
incl. 19% VAT , plus shipping costs (Standard)
Old price: 94,99 €
pcs
  • Low stock level
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
Description

This item is a B-goods item:
- The item may show signs of wear
- The item images show new goods, not the B-stock item
- Separate 12 month warranty
- Original packaging may be damaged/missing

The Interline SECTOR H60 WiFi sector antenna is designed for the 2.4GHz frequency band (WiFi standard) and supports all common WiFi standards within this frequency band (IEEE802.11 a/n).

The sector antenna has a power gain of 14dBi, is horizontally polarized and has a signal opening angle of 60°. This 2.4 GHz sector antenna can be used to illuminate a corresponding area over a large distance.

The housing casing of the SECTOR H60 antenna is made of robust, weatherproof and UV-resistant plastic. The back of the antenna is made of stainless steel. This means that the antenna can also be used outdoors and can withstand any weather conditions.

You can find suitable coaxial antenna cables for connecting the sector antenna in our webshop. If you have difficulties choosing a plug, please feel free to ask us.

The sector antenna is intended for mounting on a mast or wall mount. A pipe clamp (38mm - 51mm) is included.


Technical data:

Manufacturer:INTERLINE
Model:SECTOR H60 (IS-G17-F5258-A60-H)
Antenna type:Sector antenna
Performance gain:14dBi
Impedance:50 ohms
Frequency range:2400-2500MHz
(IEEE 802.11 a/n)
VSWR:2.0:1
Polarization:Horizontal (Linear)
Signal opening angle:60° Horizontal
6° Vertical
FBR (Front/Back Ratio):min. 24dB
XPD (Cross Polarization Discrimination):min. 27dB
max wind load:47N (@170km/h)/td>
DC Ground:Yes
Connection:N socket
Area of application:Indoor and outdoor use (IP64)
Dimensions:8.3cm x 42.7m x 1.5cm
Weight:580g
Color:White


Scope of delivery:

1 x Interline SECTOR H60 - 2.4GHz 14dBi WiFi sector antenna B-stock
1 x stainless steel mounting bracket incl. pipe clamp B-stock
