Welcome to the Wi-Fi 7 Era – Your Entry into the Future

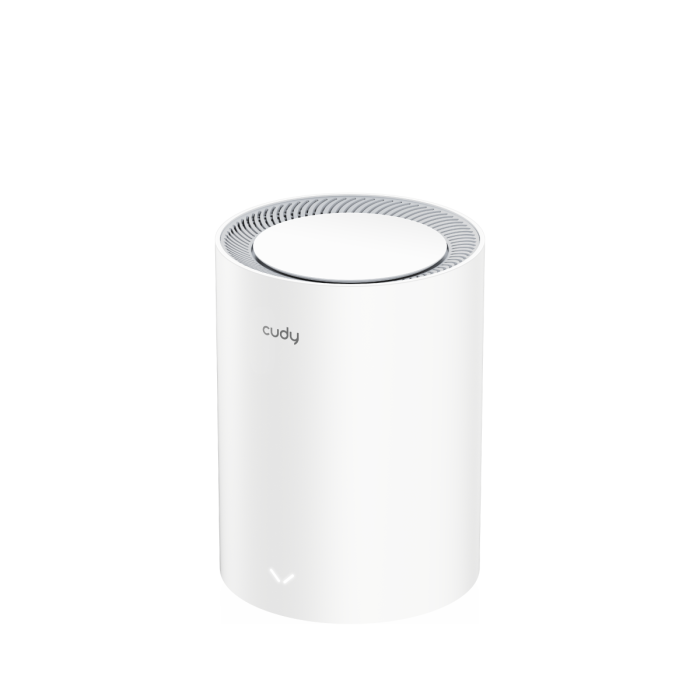

The WiFi 7 Mesh System Cudy M3600 is your ticket to the next generation of wireless connectivity. Forget stutters during 8K streaming or lags in crucial gaming moments. Thanks to Wi-Fi 7 with Multi-Link Operation (MLO), your end device can use both frequency bands simultaneously. The result: an extremely stable connection with minimal latency. 4K-QAM technology also packs 20% more data into each transmission. This way, you get the maximum out of your internet connection without having to switch to expensive tri-band systems.
VPN Powerhouse: Security and Freedom for Your Network
In an era where digital privacy is more important than ever, the Cudy M3600 sets new standards. It is not only a powerful WiFi Router but also a full-fledged VPN center. Whether you want to build a secure tunnel into your home Network or protect your entire Network via an external Service provider – with protocols like WireGuard, OpenVPN, IPSec, and Zerotier, all doors are open to you. Configure it as a server or client and enjoy absolute control and security for all your devices.
Seamless Mesh WiFi for Your Entire Home
No more WiFi dead zones! The Cudy M3600 is designed as a flexible Mesh System that grows with your requirements. The units are pre-configured and automatically connect to a single, intelligent network. You move freely through your home, and your devices seamlessly switch to the strongest node. For ultimate performance, simply connect the units via Ethernet Cable (Wired Backhaul) and utilize the full bandwidth of your WiFi for your end devices. A system that is perfect for large apartments, multi-story houses, or offices.
Performance that Inspires: For Gamers, Streamers, and Smart Homes
Under the hood of the elegant, cylindrical design works a 2.0 GHz Quad-Core processor that effortlessly manages up to 200 devices simultaneously. This makes the M3600 the ideal command center for your growing Smart Home. From the smart light bulb to the gaming PC – every device receives the necessary bandwidth. Thanks to technologies like OFDMA, MU-MIMO, and Beamforming, the efficiency of your network is maximized, and performance is specifically directed where it is needed. Get ready for a responsive and reliable network experience.
Strengths & Notes at a Glance
- Pro: Very cost-effective entry into Wi-Fi 7 technology with MLO and 4K-QAM.
- Pro: Exceptionally comprehensive VPN support with server and client mode for WireGuard, OpenVPN, etc.
- Pro: Easily expandable Mesh System with the option for an extremely stable Ethernet backhaul.
- Pro: High capacity for up to 200 devices and reduced latency, ideal for gaming and Smart Homes.
- Note: As a Dual-Band system, the 5 GHz channel in pure WiFi backhaul mode shares bandwidth between nodes and clients, which can limit performance.
- Note: With new products, initial firmware instabilities may occur; user reports indicate possible packet loss with wired connections.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | M3600 (1-Pack) |
| EAN: | 6971690793647 |
| Device Type: | WiFi Mesh Router System |
| Chipset: | Broadcom BCM6764 |
| CPU: | 2.0 GHz Quad-Core, ARM Cortex-A7 |
| RAM: | 512 MB DDR3L |
| Flash Memory (ROM): | 128 MB NAND |
| Operating System: | Based on OpenWRT |
| WiFi Standard: | Wi-Fi 7 (IEEE 802.11be) |
| Backward Compatibility: | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Frequency Bands: | Dual-Band (2.4 GHz, 5 GHz) |
| Max. Data Rate (Total): | BE3600 (approx. 3.6 Gbit/s) |
| Data Rate 5 GHz: | Up to 2882 Mbit/s |
| Data Rate 2.4 GHz: | Up to 688 Mbit/s |
| Antennas: | 4x internal Antennas per unit |
| MIMO: | 2x2 MU-MIMO on both bands |
| WiFi Technologies: | Multi-Link Operation (MLO), 4K-QAM, 160 MHz Channel Width, OFDMA, Beamforming, BSS Color, Smart Connect |
| WiFi Encryption: | WPA, WPA2, WPA3, WPA-PSK/WPA2-PSK, 64/128-bit WEP |
| VPN Support: | Server & Client |
| VPN Protocols: | WireGuard, OpenVPN, IPSec, Zerotier, L2TP, PPTP |
| Security Features: | SPI Firewall, DoS Protection, Guest Network, Parental Control, DNS over TLS |
| Ethernet Ports per Unit: | 3x Gigabit Ethernet (1x WAN, 2x LAN, Auto-Sensing) |
| Dimensions (per Unit): | Φ110 × 154.5 mm |
| Weight (per Unit): | 357.6 g |
| Power Supply: | 12 V DC, 1 A (Power Adapter 100-240V AC) |
| Max. Power Consumption: | 9 W |
| Operating Temperature: | 0 °C ~ 40 °C |
| Management: | Web Browser, Cudy Mobile App (Local/Cloud) |
| Certificates: | FCC, CE |
Scope of Delivery
| 1 x Cudy M3600 Wi-Fi 7 Mesh Router |
| 1 x Power Adapter (12V/1A) |
| 1 x RJ45 Ethernet Cable |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Is the Cudy M3600 a true Wi-Fi 7 Router?
Yes, the Cudy M3600 is a Wi-Fi 7 Router that supports the IEEE 802.11be standard. It utilizes key technologies such as Multi-Link Operation (MLO) and 4K-QAM. However, it is a dual-band device and does not use the 6 GHz frequency band, which is also part of the Wi-Fi 7 standard.
Can I use the Cudy M3600 as an Access Point?
Yes, each Cudy M3600 unit can be flexibly configured and supports, among other things, the 'Wireless Access Point' mode. In this mode, it is connected to your main router via cable to extend its WiFi range.
Do I necessarily need a cable between the devices for the mesh system?
No, the system can be operated wirelessly (via WiFi backhaul). However, for the best possible performance and stability, especially with high internet speeds, a wired Ethernet backhaul between the mesh units is strongly recommended.
Does the Cudy M3600 support VPN services like NordVPN or WireGuard?
Yes, the router offers extensive VPN support. It can act as both a VPN client and a VPN server and supports modern protocols like WireGuard and OpenVPN, which enables configuration with services like NordVPN.
How many devices can I connect to the Cudy M3600?
The system is designed to support up to 200 devices simultaneously, making it suitable for modern Smart Homes with many IoT devices, smartphones, and computers.
What is the difference between the Cudy M3600 and the WR3600?
The Cudy M3600 is a cylindrical mesh system designed for flexible placement in living spaces. The WR3600 is a more traditional WiFi Router with external Antennas. Although both offer Wi-Fi 7 and similar speeds, the M3600 is primarily optimized for building a seamless mesh network with multiple units.
