This is a high gain 2,4 Ghz 1000mW (30dBm) Wi-Fi Booster.
Standard Wi-Fi devices (Access Points, Routers, PCI Cards, USB Sticks) work with a transmission and receive power up to 100mW (max).
This Booster has a transmission and receive power of 1000mW (30dBm). It amplifies your Wi-Fi signal and increases the range and stability of your Wi-Fi network enormously.
This Booster works Bi-Directional (TX/RX). Thus it amplifies both, the sending (TX) an receiving (RX) signal of your Wi-Fi device.
You don't have to install further drivers or make speciel configurations. The Booster ist connected between RF output of your Wi-Fi Device and the Wi-Fi antenna.
An according 30cm conenctions cable with RP-SMA connector for the connection between you Wi-Fi device and the Booster is included.
Examples:
Usage with an Wi-Fi Router:

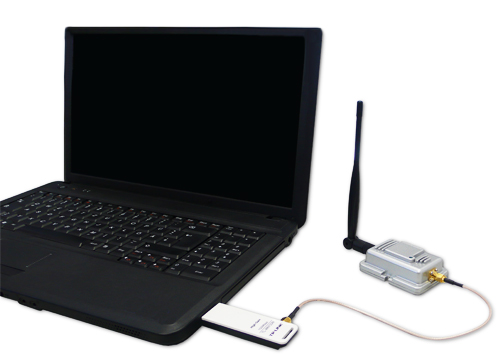

Usage with an Notebook Wi-Fi USB Adaptor:
You can also combine this Booster with our Wi-Fi Antennas.
| Technical Data: |
| Gerätetyp: |
Wi-Fi Signal Booster (Bi-Directional) |
| Frequency: |
2400-2500 MHz |
| Impedance: |
50 Ohm |
| Supported Wifi Standards: |
IEE802.11 b/g (11 Mbps to 108 Mbps) |
| Transmitter input power: |
5dBm (min.) to 20dBm (max.) |
| RF Output power: |
1000mW (30dBm) |
| Noise Factor: |
3,5dB |
| Connector Input: |
SMA Jack |
| Connector Output: |
RP-SMA Jack |
| Appliance: |
Indoor |
| Operating Temp: |
-20°C to +70°C |
| Operating Humidity: |
Up to 95% relative humidity |
Casing / Weight /
Color / Dimensions: |
Aluminium / 400g /
Silver / 7,8 x 5,6 x 2,9cm |
| Guarantee: |
24 Month |
| Scope of Delivery: |
| 1000mW Wi-Fi Booster (OEM) |
| 5dBi Omni Antenna |
| 30cm Pigtail |
| 6V AC Adaptor (EU Standard) |
| Manual |
As you know the european law limits the power of a Wi-Fi device to 100mW. You have to take care that you do not exceed this limit.
